How are Pickleballs Made?

Yellow Pickleball left on the court.

Pickleballs are typically made using either an injection molding process or a rotocasting process. Injection-molded balls have holes produced during the molding process, and they are made up of two parts. Afterward, the two halves are bonded together to form a ball with a crease running through its center.

I have always wondered about this and it is so intriguing to find out the intricate details. We use this ball, which’s carefully and wonderfully made to let off this amazing sound, (albeit annoying to some).

Let’s peek into the holes of pickleball balls and see how they’re made, according to sporting goods expert Wilson, what they’re made of, and the whole shebang.

Related To: What Equipment Do You Need To Play Pickleball? | Where to Buy Pickleball Paddles, Balls and Nets Online

How Are Pickleballs Made?

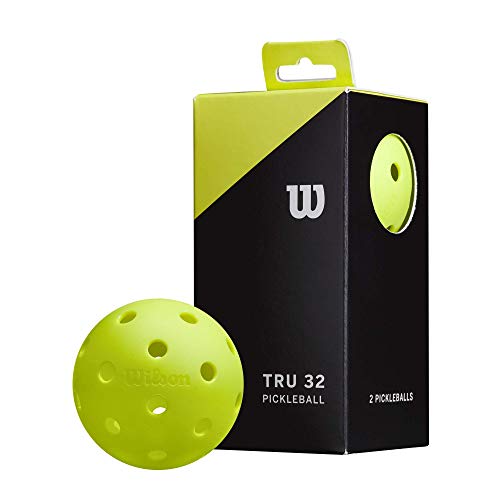

Wilson Tru 32 Outdoor Pickleball (48 Pack)

Pickleballs can be manufactured using either a rotocasting process or an injection molding process. Balls that are injection molded are made up of two parts, and holes are created during the molding process. After that, the two halves are bonded together to form a ball with a crease running across the middle.

In comparison to a traditional wiffle ball, a pickleball is comprised of lightweight plastic and features variable degrees of toughness in addition to drilled-in holes. Pickleballs used indoors are more refined, with a weight of 0.8 oz and 26 holes. Pickleballs played outdoors typically weigh 0.9 oz, contain 40 holes, and become less susceptible to the effects of wind.

Wilson Sports claims that reliability and longevity are at the heart of what characterizes an excellent pickleball. TRU 32 was developed and refined here in the United States of America, and its performance is unmatched in the industry.

How Did the Wilson TRU 32 Design Originate?

Close up hard plastic pickleballs on the court.

In the early months of 2018, Wilson’s designers got together to discuss what makes a great pickleball. Two-piece injection-molded balls and one-piece rotocast balls, the two types of pickleball balls studied, were shown to have unique benefits and drawbacks.

Our goal was to find a way to blend the greatest features of several balls to create the ultimate ball with unmatched performance in every facet. There had to be something unexpected about this ball for it to become the game’s favorite.

Pickleball Master Course by Steve Dawson ($199)

Wilson engineers drew on their knowledge of other sports, like golf and tennis, to find the optimal balance between manufacture, design, and composition for a world-class pickleball. Several different prototypes and extensive laboratory testing ultimately led to TRU 32 being deemed the ball properly suited for game-changing efficiency.

First, There Is The Design Phase. Unique In Every Way

WILSON Tru 32 Pro Outdoor Infrared Pickleball Balls (2 Pack)

Competitors in any sport need to have faith in their game, and that can’t happen until they know the ball is consistent. Expectations regarding the ball’s expected performance inform the next swing, throw, kick, or shot. TRU 32 is the industry standard for reliable pickleball flight, thanks to its cutting-edge design that is unlike anything else on the market.

“We found that maintaining a consistent ball’s flight opened up a world of possibility for our ball. To enhance the flight characteristics of pickleballs, we began to experiment with different hole patterns and eventually settled on 32 evenly spaced holes. We’re taking a chance on her,” says Chloe Lee, an advanced materials engineer for Wilson Sports.

TRU 32 is best known for its innovative 32-Equally Spaced Hole Design. This 32-hole pattern has a few advantages over the 40-hole norm for outdoor pickleball, including higher bounce and more stable ball flight.

In most cases, the bounce from the off surface, as well as the paddle face, will be more constant with fewer holes that are uniformly placed. The TRU 32 ball, unlike other balls with 40-hole designs, can reliably rotate around any axis due to the uniform distribution of holes over its surface.

This results in steadier flight with less sway as you travel through the air. Watch the video below to see the striking contrast in flight characteristics between the 32-hole design of TRU 32 and two competing 40-hole balls.

Wilson LABS tested TRU 32 and several of its top competitors at its Innovation Center to bolster the claim that this distinctive hole arrangement ensures unmatched performance consistency. TRU 32 performed noticeably better when compared to other variants when a ball launcher was used to track where each ball landed.

TRU 32’s much tighter landing area when compared to its rivals suggests the TRU 32 ball goes more dependably with a narrower spectrum of outcomes for more reliable performance. One more benefit of TRU 32’s uniformly placed holes is the course’s accuracy and ease of play.

Report On Flight Stability, Direct From The Lab

Once released at the same speed and angle, TRU 32 plus two top rivals all landed in the same general area, as predicted by Wilson LABS.

A Truly Original Composition Makes up the Pickleball

Yellow and green pickleballs on the court.

Pickleballs are typically made using either an injection molding process or a roto casting process. Injection-molded balls have holes produced during the molding process, and they are made up of two parts. Afterward, the two halves are bonded together to form a ball with a crease running through its center.

Rotocast balls, on the other hand, are drilled for holes after being rotationally molded in a single piece, eliminating the need for seams. When releasing a mold, some rotocast balls may exhibit a line around the center of the ball that looks like a seam.

Pickleballs are injection molded by first pumping a thermoplastic material into a mold and then chilling the mold so that the resin hardens into the pickleball’s final shape. This method utilizes an external and inner mold to provide uniform wall thickness throughout the ball’s creation, which in turn ensures uniform ball mass as well as weight dispersion.

To make a rotocast pickleball, a thermoplastic powder is first placed within a mold before being heated and rotated to melt the resin and conform to the mold’s inner surface, creating a finished ball. A single, external mold is used in this method.

Therefore, the pickleball’s internal geometry is formed by the centrifugal force generated by the revolving mold. Rotating the mold along three orthogonal axes is recommended for producing a uniform wall thickness.

Nowadays, many rotocast pickleballs are only turned in two orthogonal axes due to manufacturing costs, which results in less uniform wall thickness. However, rotocast pickleballs tend to be more reliable in terms of rebound plus toughness all through the course of multiple games.

The injection-molded manufacturing process used to create TRU 32 ensures uniform wall thickness throughout each ball. While this helps performance consistently, it raises questions about how well this two-piece design will stand up over time. What is it?

Wilson claims that after extensive research and refinement, they have arrived at a proprietary mixture that helps to prevent the paddle’s rebound from degrading too quickly and keeps the paddle’s feel relatively sharp for the duration of matches.

The composition of TRU 32 inspired hope for its performance and durability compared to the competition because it leveraged prior materials and experience from balls throughout numerous sports.

Wilson’s engineers put their theory regarding makeup and its level of influence to the test in the lab by using TRU 32 and leading competitors in the industry. There was a lot of cause for optimism with the findings.

An Experimental Look at Ball Deformation and Return

A pickleball ball left in the corner of the court.

Wilson’s engineering team ran a lab test comparing TRU 32 to two of its leading injection-molded rivals. The performance comparison balls from each brand are compared before and after being used for an hour and then allowed to rest for 24 hours.

The Ball’s Outcome is Decided by the Players

An old man preparing to serve on a pickleball match.

Most pickleball players would rather have a somewhat rougher, game-ready surface than a perfectly polished one right out of the box. Players benefit from a more natural feel and need less time to adjust to the surface of the ball when using these weathered finishes.

TRU 32 picks up “fuzz” as it moves through a match, which improves its surface qualities and allows players to generate greater spin, speed, and finesse.

Everything Begins And Concludes In America

TRU 32 is made and transported out of the United States wholly, making it unique among pickleball products. TRU 32 is happy to call the United States home because of the hard work of a team in Wisconsin who have made it their mission to ensure that these pickleballs live up to and even exceed customers ’ expectations of players everywhere.

So, What Happens Next?

Wilson is committed to enhancing the experience of all pickleball players, from the most casual sports and leisure players to the sport’s highest-level professionals, by carefully considering both past lessons and future potential.

Are you looking for the essence of TRU 32? While this is a huge improvement in terms of pickleball performance because of the ball’s highly inventive design and manufacture, Wilson Pickleball promises that this is only the beginning.

So What Are Pickleballs Constructed From?

Hard plastic balls in different sizes.

There are many varieties of pickleball balls, all of which are constructed from various types of hard plastics, resins, or polymers. Whether they are made to withstand the elements, be used in a competitive setting, or be played with the family in the backyard all affect their durability and construction.

Using the correct ball makes the game much better while using the incorrect ball can lead to frustration and disappointment.

The playability of a pickleball varies according to its construction.

Softer balls are more manageable, but they don’t move as far or as quickly as their tougher counterparts. Below, we delve deeper into this topic so you can select the optimal pickleball for the game.
